BIT COIL 8×30
Additional information

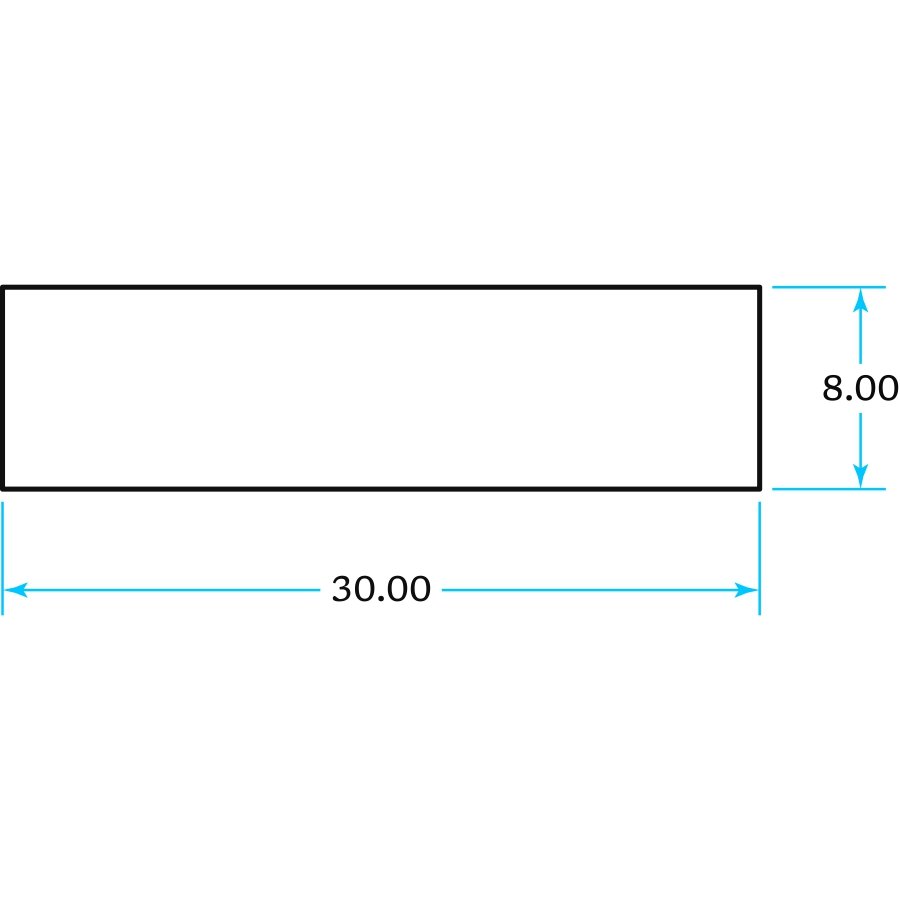

| Size | 8×30 mm |
|---|---|
| Pin Pitch (mm) | 9 |
| Pin Length (mm) | 10 |
| Pin Diameter (mm) | 1.2 |
| Rated Current (RMS) (A) | 10 |
| Part Name | Inductance @ 1 KHz, 0.3 V (µH) | Wire Gauge (SWG) | DC Resistance @ 200 ℃ (Ω) (max) | Pin Pitch (mm) | Pin Length (mm) | Pin Diameter (mm) | Rated Current (RMS) (A) |
|---|---|---|---|---|---|---|---|
| FR/E1 | 5 | 18 | 0.006 | 9 | 10 | 1.2 | 10 |
