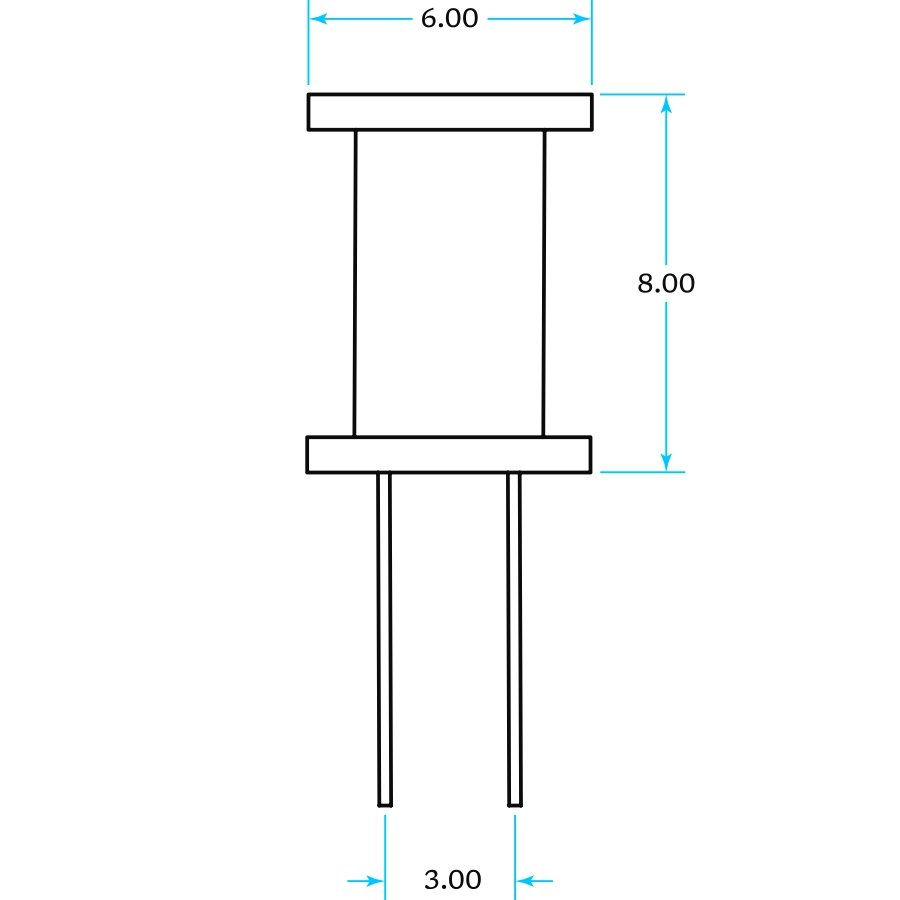

DRUM 6X8
Additional information
| Size | 6X8 mm |
|---|---|
| Pin Pitch (mm) | 2.5 |
| Pin Length (mm) | 15 |
| Pin Diameter (mm) | 0.7 |
| Rated Current (RMS) (mA) | 250 |
| Part Name | Inductance @ 1 KHz, 0.3 V (µH) | Wire Gauge (SWG) | DC Resistance @ 200 ℃ (Ω) (max) | Pin Pitch (mm) | Pin Length (mm) | Pin Diameter (mm) | Rated Current (RMS) (mA) |
|---|---|---|---|---|---|---|---|
| DC/A1 | 3.3 | 27 | 0.022 | 2.5 | 15 | 0.7 | 250 |
| DC/A2 | 10 | 28 | 0.044 | 2.5 | 15 | 0.7 | 250 |
| DC/A3 | 1000 | 39 | 3.146 | 2.5 | 15 | 0.7 | 250 |
| DC/A4 | 2200 | 39 | 5.121 | 2.5 | 15 | 0.7 | 250 |
| DC/A5 | 5000 | 42 | 12.71 | 2.5 | 15 | 0.7 | 250 |
