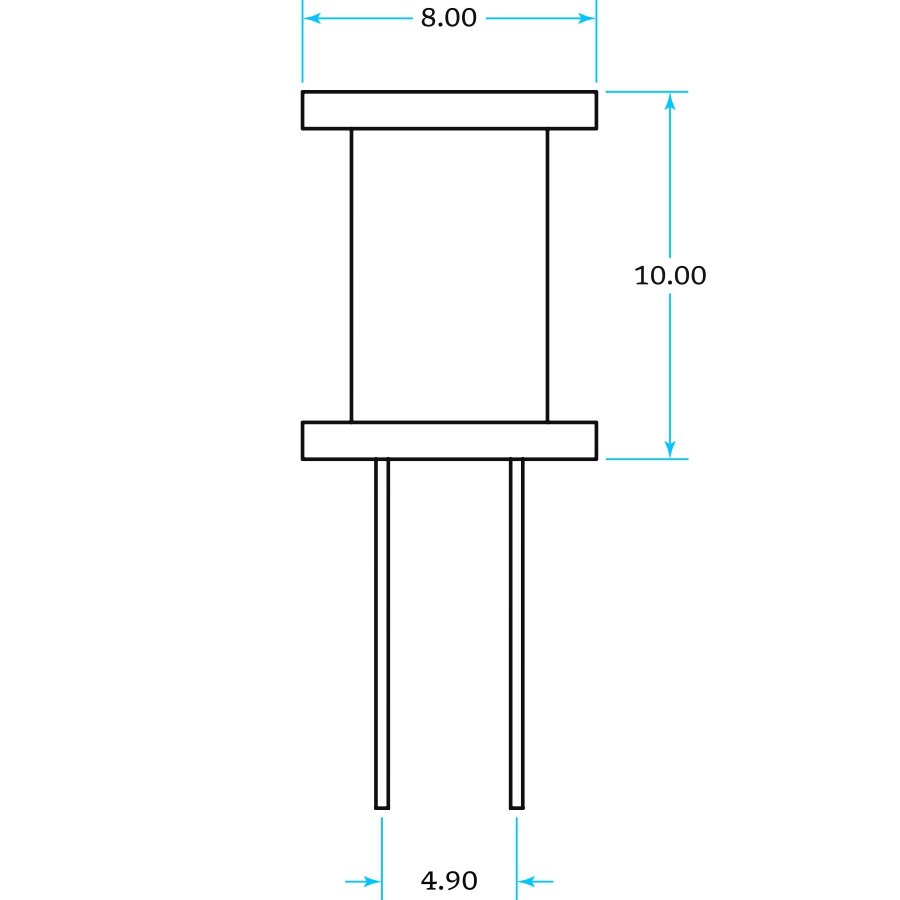

DRUM 8X10
Additional information
| Size | 8X10 mm |
|---|---|
| Pin Pitch (mm) | 5 |
| Pin Length (mm) | 15 |
| Pin Diameter (mm) | 0.7 |
| Rated Current (RMS) (mA) | 500 |
| Part Name | Inductance @ 1 KHz, 0.3 V (µH) | Wire Gauge (SWG) | DC Resistance @ 200 ℃ (Ω) (max) | Pin Pitch (mm) | Pin Length (mm) | Pin Diameter (mm) | Rated Current (RMS) (mA) |
|---|---|---|---|---|---|---|---|
| DC/B1 | 3.3 | 26 | 0.016 | 5 | 15 | 0.7 | 500 |
| DC/B2 | 10 | 26 | 0.03 | 5 | 15 | 0.7 | 500 |
| DC/B3 | 1000 | 36 | 1.852 | 5 | 15 | 0.7 | 500 |
| DC/B4 | 2200 | 37 | 3.387 | 5 | 15 | 0.7 | 500 |
| DC/B5 | 5000 | 38 | 7.386 | 5 | 15 | 0.7 | 500 |
