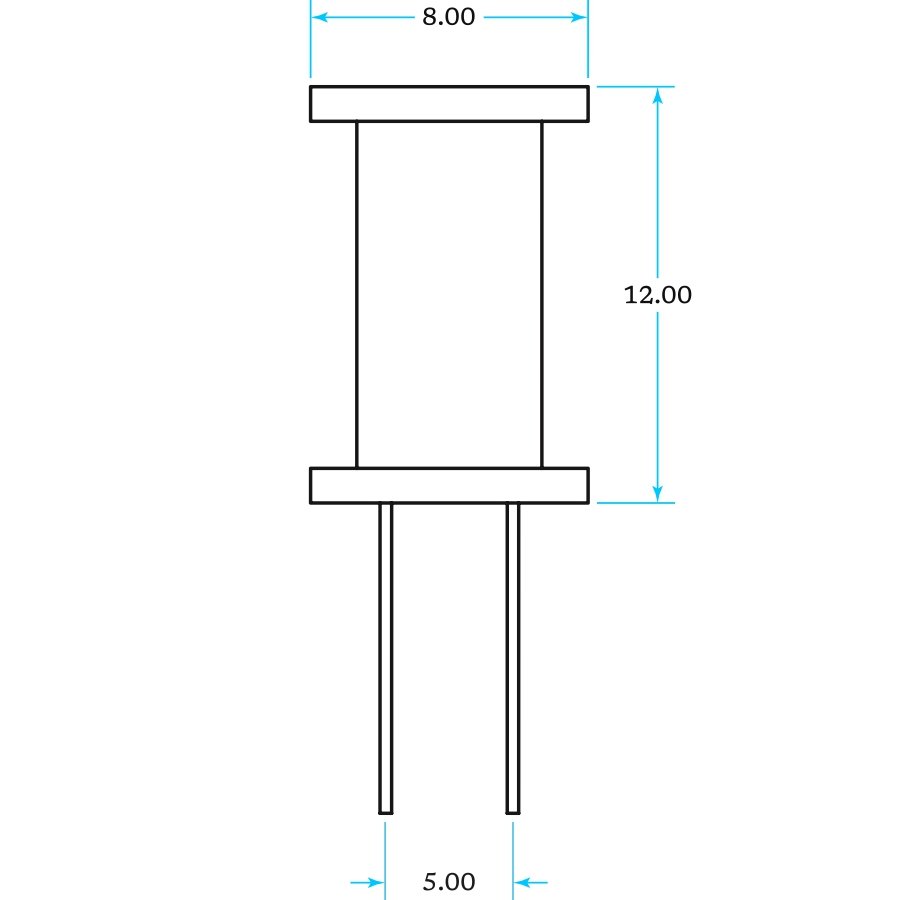

DRUM 8X12
Additional information
| Size | 8X12 mm |
|---|---|
| Pin Pitch (mm) | 5 |
| Pin Length (mm) | 15 |
| Pin Diameter (mm) | 0.7 |
| Rated Current (RMS) (mA) | 750 |
| Part Name | Inductance @ 1 KHz, 0.3 V (µH) | Wire Gauge (SWG) | DC Resistance @ 200 ℃ (Ω) (max) | Pin Pitch (mm) | Pin Length (mm) | Pin Diameter (mm) | Rated Current (RMS) (mA) |
|---|---|---|---|---|---|---|---|
| DC/C1 | 200 | 28 | 0.246 | 5 | 15 | 0.7 | 750 |
| DC/C2 | 322 | 30 | 0.414 | 5 | 15 | 0.7 | 750 |
| DC/C3 | 500 | 32 | 0.732 | 5 | 15 | 0.7 | 750 |
| DC/C4 | 1000 | 32 | 1.166 | 5 | 15 | 0.7 | 750 |
| DC/C5 | 2200 | 36 | 2.99 | 5 | 15 | 0.7 | 750 |
