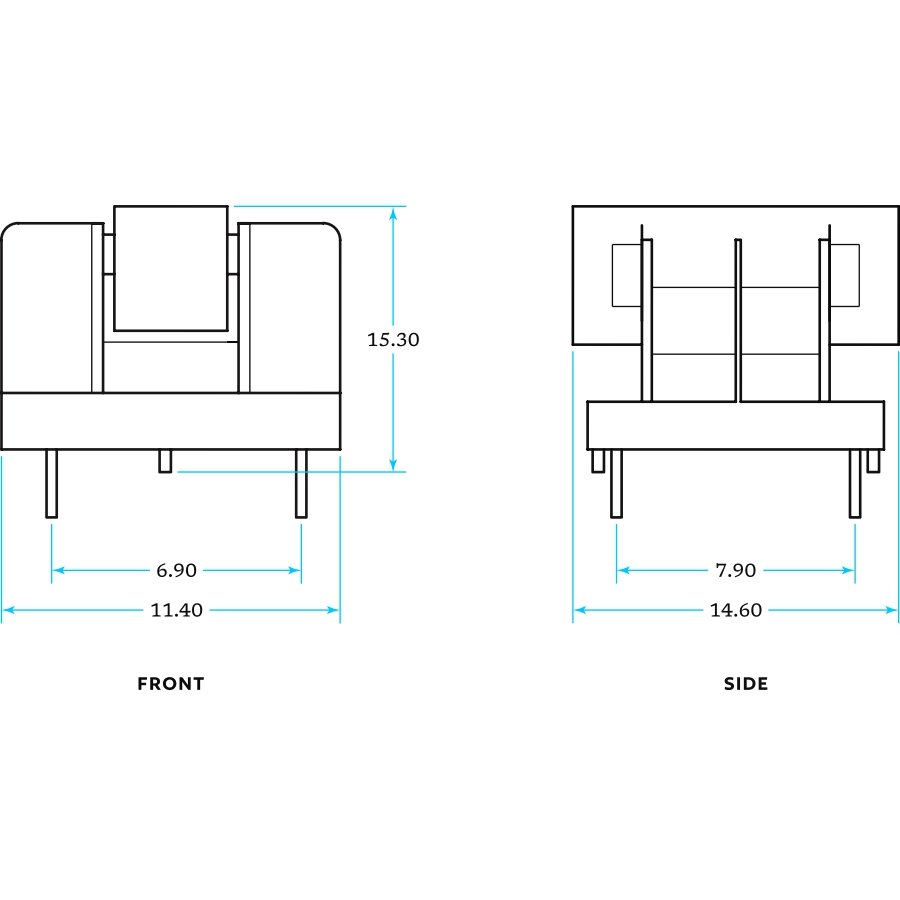

UU9.8 4P “V”
Additional information
| Size | 9.8 mm |
|---|---|
| Orientation | Vertical |
| Pins | 4 |
| Le | 34 mm |
| Ae | 8 mm² |
| Ve | 271.1 mm³ |
| Isolation between Windings | 1.5kV AC |
| Part Name | Inductance (mH) (min) | Current Rating (A) (steady state) | Leak Inductance (µH) typical | DC Resistance (Ω) (max) |
|---|---|---|---|---|
| EC/UU9.8/V1 | 2.2 | 350 | 40 | 0.375 |
| EC/UU9.8/V2 | 3.9 | 290 | 70 | 0.625 |
| EC/UU9.8/V3 | 5.6 | 250 | 100 | 0.9 |
| EC/UU9.8/V4 | 8.2 | 250 | 133 | 1.1 |
| EC/UU9.8/V5 | 9.1 | 175 | 160 | 1.6 |
| EC/UU9.8/V6 | 15 | 150 | 300 | 2.75 |
| EC/UU9.8/V7 | 15 | 150 | 355 | 2.98 |
| EC/UU9.8/V8 | 30 | 120 | 525 | 4.5 |
| EC/UU9.8/V9 | 30 | 120 | 525 | 4.5 |
| EC/UU9.8/V10 | 36 | 85 | 625 | 6 |
